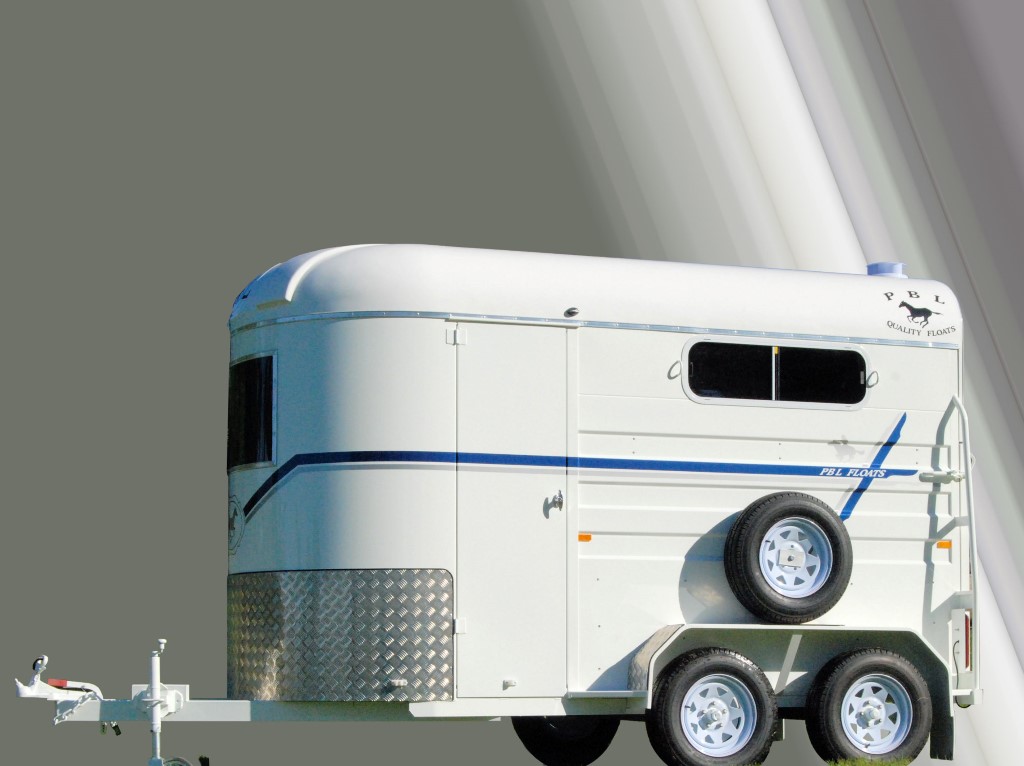

Standard SL600 Enclosed Double Floats


Standard SL600 Enclosed Double Floats
Reference No:
954
Standard:
Yes, this product is stock standard
Tags:
  • Float
  • Stripping
  • Tandem Axle
  • White

Technical Specifications

This section outlines some of the more technical aspects of the product displayed above. Please note that the following information applies to a stock standard item only. Adding, removing or modifing components may alter it's dimentions, weight, capacity or any other of the items listed below.

Attributes Details
Sizing 3600mm x 1670mm x 2100mm
ATM 2000Kg
Bay Length 1950 mm x 780mm
Finish Etch Prime and Two Pac White Paint
Inclusions Two Wheel Electric Brakes (In Cab. Control)
Independent Torsion Rubber Suspension
Tinted Screened Windows in Side 1000 x 300
Drawbar Infill
Algal and Duragal Steel Chassis & Frame
Zincaneal Sheet Panels
Structural Hardwood Ply G2 F27 Flooring - Sealed
Insertion Rubber Matting - Sealer/Adhesive
One Piece Fiberglass Roof
Tac Box in Front - Outside Door & Inside Door
Swing Out Saddle Rack
Mesh Rug Rack
Lift Up Rear Door
Roof Vents 2 - Pop Up / 2 - Rotary
LED Lights to ADRs -
Rear Large Combo STI
LED Lights to ADRs - 2 x Number Plate Lights
LED Lights to ADRs - 1 Pair Red Amber Lights
Interior Dome LED Light c/w Switch Wired to Float Lights
Interior Tac Light - Dome LED c/w Switch Wired to Lights
Spring Assisted Tailgate - Ply & Rubber, Ali Wear Strip
Colorbond Sheet Finish on Tailgate
Internal and External Tie Points
Removable Chest Bars, Head & Centre Divider
Rump Bars
Side, Chest and Divider Padding
Kickboard - HDPE Black
Large Tinted Front Window
Side Access Door - Lockable and Inside Handle
Stone Guard 600mm Aluminum Tread Plate Front Curve and Front of Mudguards
Wheels 14" Ford Sunrasia Rims, New 185R14LT Tyres x 5
Spare Mounted Outside on Mudguard P/S
8" Swivel Jockey Wheel
Rated 10mm Double Safety Chain
Pre Paint - Prepsol clean, Adhesive/Sealer Seal
Tare Weight 900Kg
Warranty 12 Months Conditional
Suspension 5 Years Conditional
Striping 2" & 1"

Product Options

This section outlines some of many options that are availble

Code Details
PBLHO.1.001 Extension to 3600mm ATM 2000Kg View Photo
PBLHO.1.002 Extension to 3900mm, Upgrade ATM to 2.49T
PBLHO.1.003 Tack Box in Front (Need Ext.) Door Outside & Inside View Photo
PBLHO.1.004 Swing Saddle Rack (2 Horse) in Tack Box View Photo
PBLHO.1.005 Sliding Window 1000 x 300 - Tinted & Screened (pair) View Photo
PBLHO.1.006 Rotary Roof Vents
PBLHO.1.007 Pop-up Roof Vent View Photo
PBLHO.1.008 Rug Rack (Needs Extension) View Photo
PBLHO.1.009 Rear Barn Doors - Removable
PBLHO.1.010 Rear Door - Lift up - Gas Strutted View Photo
PBLHO.1.011 Rear Dust Covers (White)
PBLHO.1.012 Side Dust Cover (White) View Photo
PBLHO.1.013 Drawbar Brake Controller 12v
PBLHO.1.014 Additional Internal Dome LED Light c/w Switch
PBLHO.1.015 Upgrade ATM 2T to 2.49T incl. 4 Wheel Brakes, Brakesafe
PBLHO.1.016 Stallion Divider
PBLHO.1.017 Kickboards HDPE 9mm View Photo
PBLHO.1.018 Chest Pads View Photo
PBLHO.1.019 Rump Pads View Photo
PBLHO.1.020 Centre Divider Padding View Photo
PBLHO.1.021 Centre Divider Rubber Drop Sheet
PBLHO.1.022 Stoneguard - Ali. Treadplate 600mm in lieu 400mm View Photo
PBLHO.1.023 M’Guard T’Box 1200 x 240 x 560 c/w Shelf, Hinge Down Door View Photo
PBLHO.1.024 Spare Wheel Mount Outside View Photo
PBLHO.1.025 20Ltr Jerry Can Holder View Photo
PBLHO.1.026 Drawbar Infill Aluminum Checkerplate
PBLHO.1.027 Extra Front Door
PBLHO.1.028 Gig Hook (Set)
PBLHO.1.029 Awning - Omn 4900 2.6x2.5 Blue or Grey View Photo
PBLHO.1.030 Awning - Omn 4900 3.0x2.5 Blue or Grey
PBLHO.1.031 Portable Yard, Set of 8, Mounted View Photo
PBLHO.1.032 Animat - 10mm Thick. Polymerically Bound Rubber per Sq Mt
PBLHO.1.033 New 185/14LT Tyres in lieu of Second Hand
PBLHO.1.034 Float Water 41L Tank (On Guard) View Photo
PBLHO.1.035 Float Water 65L Tank (On Guard) View Photo
PBLHO.1.036 65L Water Tank Unit, Filler & Hand Pump
PBLHO.1.037 12v Pump, 17AmpHr Battery, Sink Tap
PBLHO.1.038 Axles & Load Sharing Shackle Rocker Suspension in lieu of Independent Suspension
PBLHO.1.039 PBL Kitchenette - Bench, Sink, Under Cupboards, Fridge Provision
PBLHO.1.040 PBL Overhead Cupboards
PBLHO.1.041 Bar Fridge 100 Lt. 240v. W500 x H850 x D500
PBLHO.1.042 Microwave 25Lt Stainless Steel - W483 x D396 x H281
PBLHO.1.043 Feed Bucket on Mudguard View Photo
PBLHO.1.044 Fold up Beds View Photo
PBLHO.1.045 240v Power - Switchboard, RCD Protection, 15AMP Inlet, 2 x Double GPO
