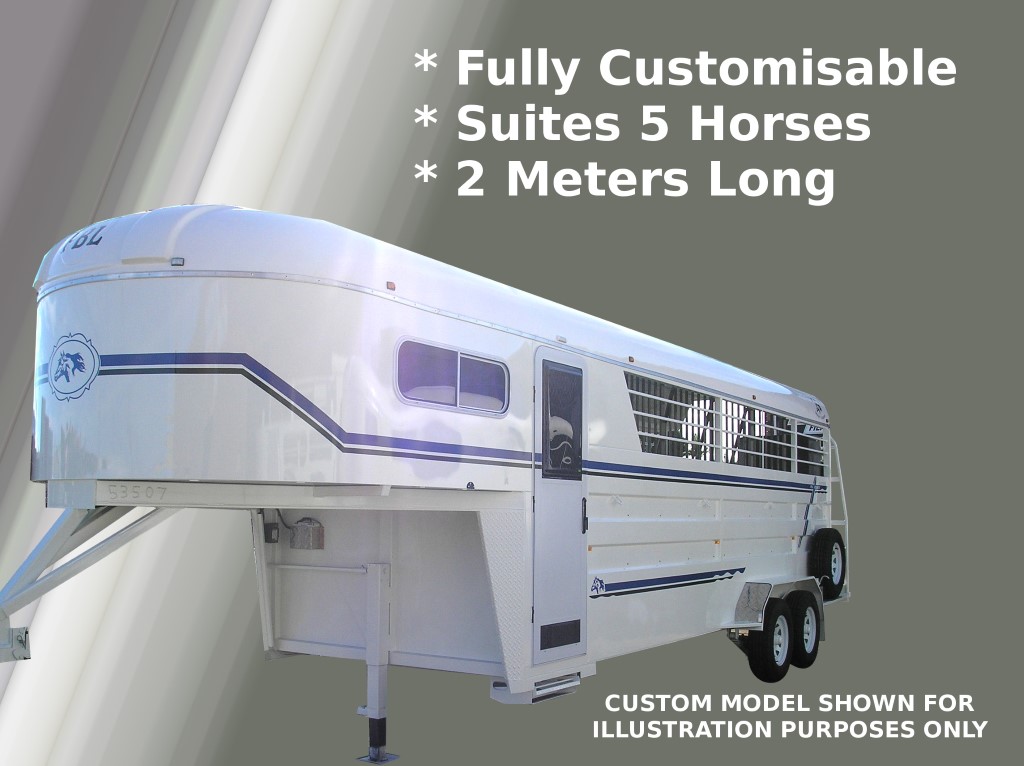

Standard 2.0m, 5 Horse, Gooseneck


Standard 2.0m, 5 Horse, Gooseneck
Reference No:
972
Standard:
Yes, this product is stock standard
Tags:
  • Float

Technical Specifications

This section outlines some of the more technical aspects of the product displayed above. Please note that the following information applies to a stock standard item only. Adding, removing or modifing components may alter it's dimentions, weight, capacity or any other of the items listed below.

Attributes Details
Sizing 8700mm x 2000mm x 2200mm
ATM 4490Kg
GTM 3800Kg
Bay Length 2500mm x 710mm
Finish Etch Prime and Two Pac White Paint
Inclusions Four Wheel 10" Electric Brakes c/w Brake Safe Break-Away
Independent Torsion Rubber Suspension
Open Sided
Algal and Duragal Steel Chassis & Frame
Zincaneal Sheet Panels
Structural Hardwood Ply G2 F27 Flooring - Sealed
Insertion Rubber Matting - Sealer/Adhesive
One Piece Fiberglass Roof
9T 75mm Coupling & Ball
LED Lights to ADRs - Rear Large Combo STI
LED Lights to ADRs - 2 x Number Plate Lights
LED Lights to ADRs - 3 Pair Red Amber Lights
Interior Light Wired to Float Lights
Neck Light - Dual Dome LED c/w Switch
Rear Horse Light - Dome LED c/w Switch
Spring Assisted Tailgate - Ply & Rubber, Ali Wear Strip
Colorbond Sheet Finish on Tailgate
Angle Divider System c/w Head Divider - Removable
Kickboard HDPE 9mm Black on Both Side
Rump Padding
Side Access Door
Aluminum Treadplate Stoneguard on Front of Guard
Internal & External Tie Point
Side Wind Jack
5 x 16" 6 Stud Sunrasia Wheels c/w New225-75R16 Tyres
Pre Paint - Prepsol Clean, Adhesive/Sealer Seal
Tare Weight 2100Kg
Warranty 12 Month Warranty Conditional
Suspension 5 Years
Striping 2" & 1"

Product Options

This section outlines some of many options that are availble

Code Details
PBLHO.3.001 Window Slide 1000x300 c/w Fly Screen View Photo
PBLHO.3.002 Window Slide 1175x508 c/w Fly Screen View Photo
PBLHO.3.003 Window Slide 280 x 457 c/w Fly Screen
PBLHO.3.004 Window Hopper 508x1175 c/w Fly Screen View Photo
PBLHO.3.005 Window Hopper 380 x 914 c/w Fly Screen
PBLHO.3.006 Caravan Door and Screen 1822x622 View Photo
PBLHO.3.007 Single C’Van Step View Photo
PBLHO.3.008 Double C’Van Step View Photo
PBLHO.3.009 Dividing Wall and Door View Photo
PBLHO.3.010 Rear Lift Up Door Complete With Gas Struts View Photo
PBLHO.3.011 Louvres in Horse Area View Photo
PBLHO.3.012 Side White Vinyl Curtains View Photo
PBLHO.3.013 Rear White Vinyl Curtain View Photo
PBLHO.3.014 Fully Padded Divider System suit 3 & 4 Horse View Photo
PBLHO.3.015 Fully Padded Divider System suit 5 & 6 Horse
PBLHO.3.016 Divider Rubber Drop Sheet
PBLHO.3.017 Animat - 10mm Thick. Polymerically Bound Rubber per Sq Mt
PBLHO.3.018 Roof Vent - Pop Up
PBLHO.3.019 Roof Vent - Rotary
PBLHO.3.020 Permanent Airflow Vent and Hatch View Photo
PBLHO.3.021 Permanent Airflow 12Volt Vent and Hatch
PBLHO.3.022 Rug Rack Mesh View Photo
PBLHO.3.023 Rug Rack Mesh c/w Mesh Door View Photo
PBLHO.3.024 Rug Rack Sheet - Enclosed c/w Lockable Door View Photo
PBLHO.3.025 Aluminum Stoneguard Under Neck View Photo
PBLHO.3.027 Aluminum Stoneguard 570mm and Front of Guard
PBLHO.3.028 Hydraulic Tailgate Lifter
PBLHO.3.029 Hay Rack and Ladder View Photo
PBLHO.3.030 Shower Tray, Hot Water Gas/240v, H&C Mixer and Rose, Rail and Curtain
PBLHO.3.031 Shower Tray & Rail View Photo
PBLHO.3.032 Nib Wall
PBLHO.3.033 Holder suit 9Kg. Bottle under neck View Photo
PBLHO.3.034 Gas Cylinder 9Kg View Photo
PBLHO.3.035 Licensed Gas Connection - Hot Water
PBLHO.3.036 Licensed Gas Connection - Cook Top (Incl. Fire Extinguisher)
PBLHO.3.037 Licensed Gas Connection - External Connection
PBLHO.3.038 Awning - Omn4900 4.0x2.5 Blue or Grey View Photo
PBLHO.3.039 Awning - Omn4900 4.5x2.5 Blue or Grey
PBLHO.3.040 Awning - Omn8000 5.03x2.75 Blue or Grey
PBLHO.3.041 Awning - Omn8000 5.53x2.75 Blue or Grey
PBLHO.3.042 Awning - Omn8000 6.03x2.75 Blue or Grey
PBLHO.3.043 Awning - Dom8500 13’ Blue (incl. Short Hardware kit)
PBLHO.3.044 Awning - Dom8500 14’ Blue (incl. Short Hardware kit)
PBLHO.3.045 Awning - Dom8500 15’ Blue (incl. Short Hardware kit)
PBLHO.3.046 Awning - Dom8500 16’ Blue (incl. Short Hardware kit)
PBLHO.3.047 Awning - Dom8500 17’ Blue (incl. Short Hardware kit)
PBLHO.3.048 Air Conditioner Reverse Cycle Roof Top Cormorant 3.5w View Photo
PBLHO.3.049 Provision for Air Conditioner in Roof
PBLHO.3.050 Provision for front mount Air Conditioner
PBLHO.3.051 Internal Dual Dome LED c/w Switch
PBLHO.3.052 Internal LED 300mm Light
PBLHO.3.053 External LED 114mm Light
PBLHO.3.054 External LED 500mm Light
PBLHO.3.055 Internal LED Adjustable Reading Light On/Off
PBLHO.3.056 Battery Charger 240v and Regulator
PBLHO.3.057 Battery Charger DC to DC via Anderson Plug
PBLHO.3.058 Inverter (Sizes as Required, POA)
PBLHO.3.059 Battery 120Amphr mounted under neck
PBLHO.3.060 100Lt Tank and Filler
PBLHO.3.061 200Lt Tank and Filler
PBLHO.3.062 External Brass Tap
PBLHO.3.063 12Volt Water Pump
PBLHO.3.064 Swing Tack/Saddle Box suit 3 Horses
PBLHO.3.065 Swing Tack/Saddle Box suit 4 Horses View Photo
PBLHO.3.066 Swing Tack/Saddle Box, Swing & Stay Outside -Upgrade
PBLHO.3.067 Built-In Neck Step, 2 Treads
PBLHO.3.068 Ceiling - Rubber Backed Carpet Lining (Neck and Living) View Photo
PBLHO.3.069 Inner Wall Lining c/w Koolfoam Insulation (Neck and Living)
PBLHO.3.070 240V Power - Switchboard RCD Protection, 15AMP Inlet, 2 x Double GPO, 2 x Internal Lights, 1 x Outside Light
PBLHO.3.071 240V Power - Switchboard RCD Protection, 15AMP Inlet, 2 x Double GPO
PBLHO.3.072 240V Power - Switchboard RCD Protection, 15AMP Inlet, 2 x Double GPO, Air Conditioner, 2 x Internal Lights, 1 x Outside Light
PBLHO.3.073 240V Power - Switchboard RCD Protection, 15AMP Inlet, 2 x Double GPO, Air Conditioner, Hot Water, 2 x Internal Lights, 1 x Outside Light
PBLHO.3.074 Double Bunk Frame and Ladder View Photo
PBLHO.3.075 Kitchenette - Bench Top, Under Cupboards and Draws, 190Lt. Fridge provision and Microwave Provision View Photo
PBLHO.3.076 Kitchenette - Bench Top, Under Cupboards and Draws, 100Lt. Fridge provision, Microwave provision, Cupboard above with Doors
PBLHO.3.077 Cook Top Gas 3 Burner c/w Glass Lid - W480 x D370 View Photo
PBLHO.3.078 Basin S/S & Glass Lid c/w Taps - W420 X D370 View Photo
PBLHO.3.079 Microwave 25L Stainless Steel - W483 x D396 x H281 View Photo
PBLHO.3.080 Bar Fridge 100Lt. 240v. W500 x H850 x D500 View Photo
PBLHO.3.081 Fridge Freezer 2 Door 190Lt. 3Way W525xH1245xD625 View Photo
PBLHO.3.082 Axles & Load Sharing Rocker Roller Suspension in Lieu
