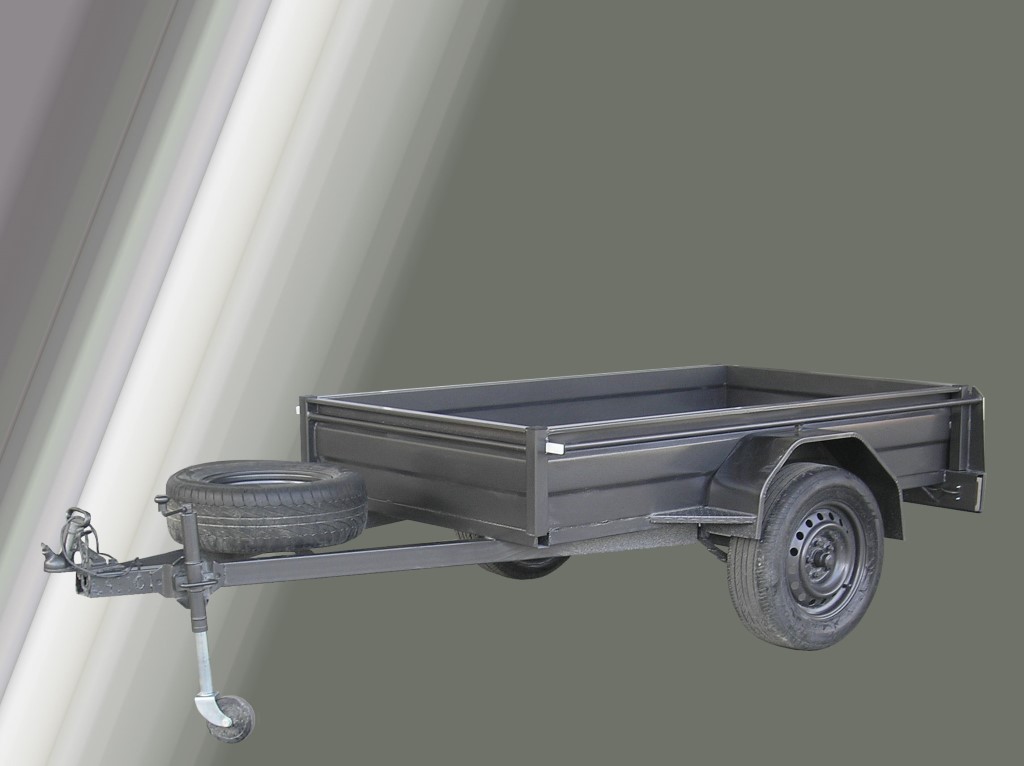

Standard Extra Heavy Duty


Standard Extra Heavy Duty
Reference No:
873
Standard:
Yes, this product is stock standard
Tags:
  • Grey/Charcoal
  • Single Axle
  • Trailer

Technical Specifications

This section outlines some of the more technical aspects of the product displayed above. Please note that the following information applies to a stock standard item only. Adding, removing or modifing components may alter it's dimentions, weight, capacity or any other of the items listed below.

Attributes Details
Sizing PBLT.1.0009 - 1800X1200 (6x4)
PBLT.1.0010 - 2100X1200 (7x4)
PBLT.1.0011 - 2400X1200 (8x4)
PBLT.1.0012 - 2100X1500 (7x5)
PBLT.1.0013 - 2400X1500 (8x5)
PBLT.1.0014 - 2400X1800 (8x6)
ATM 750 Kg
Axle 39mm Round LM
Body Panels Ribbed 310mm High
Rear Tailgate
Chassis Drawbar - 75x50x2mm RHS
Cross Runner - 50x50x2mm (6x4 -2)
Cross Runner - 50x50x2mm (Others - 3)
Side Runner -50x50x2mm
Front Cross Runner - 50x50x2mm
Corner Post 50x50x2mm Front (Capped Base) & Rear
Coupling Quick Release 50mm Adjustable
Finish Etch Prime & Hammertone / Enamel Top Coat
Floor Checkerplate 2.1mm
Hubs and Bearings 5 Stud LM
Safety Chain 8mm Rated Single
Structural Capacity 1100 Kg
Suspension 6 Leaf 45x6.5mm Slipper
Tie Rail 20nb Pipe - Front, Rear & Sides
Wheels 14"/15" Second Hand Rims & Tyres + Spare
Common Articles Lynch Pins & Bullets to Secure Tailgate
Lights in Rear Channel
12v Lights to ADRs
Mudguard Support Front & Rear - C/Plate Folded
Plug Holder
Spare Carrier
6" Swivel Jockey Wheel
