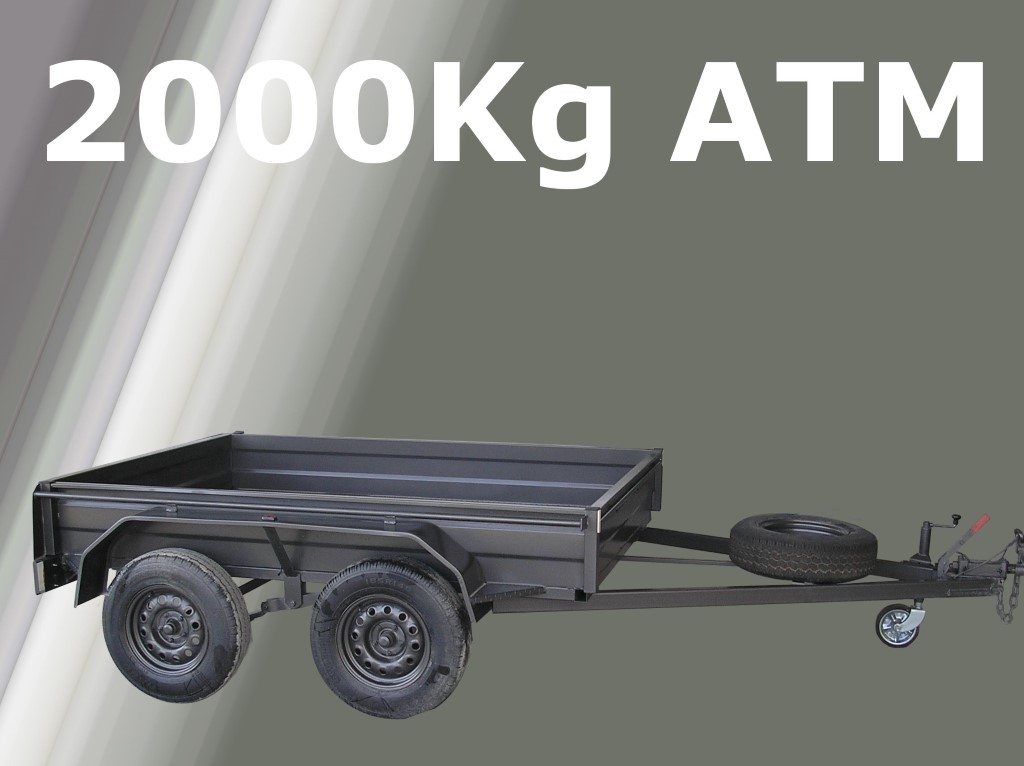

Standard 2.0T, Tandem Axle, Box Trailer
- Reference No:
- 878
- Standard:
- Yes, this product is stock standard
- Tags:
-
- Grey/Charcoal
- Tandem Axle
- Trailer
Technical Specifications
This section outlines some of the more technical aspects of the product displayed above. Please note that the following information applies to a stock standard item only. Adding, removing or modifing components may alter it's dimentions, weight, capacity or any other of the items listed below.
| Attributes | Details |
|---|---|
| Sizing | PBLT.2.0001 - 2400x1500(8x5) PBLT.2.0002 - 2400x1800(8x6) PBLT.2.0003 - 2700x1500(9x5) PBLT.2.0004 - 2700x1800(9x6) PBLT.2.0005 - 3000x1800(10x6) PBLT.2.0006 - 3600x1800(12x6) |
| ATM | 2000 Kg |
| Axle | 45mm Round SL |
| Body | Panels Ribbed 310mm High Rear Tailgate |
| Brakes | 10" Mechanical Override Disk (1 Axle) |
| Chassis | Side Runner - 50x50x2mm Front Cross Runner - 50x50x2mm Cross Runner - 50x50x2mm - (5) 8x5 Cross Runner - 50x50x2mm - (6) 9x5 Cross Runner - 50x50x2mm - (7) 10x6 Cross Runner - 50x50x2mm - (8) 12x6 Drawbar - 75x50x3mm |
| Corner Post | 50x50x2mm Front (Cap Bottom) & Rear |
| Coupling | Mechanical Override 50mm |
| Finish | Etch Prime & Hammertone / Enamel Top Coat |
| Floor | Checkerplate 2.1mm |
| Hubs and Bearings | 5 Stud SL |
| Safety Chain | 10mm Rated Single |
| Structural Capacity | 2000 Kg |
| Suspension | 4 Leaf 45x8mm Shackle Rocker |
| Tie Rail | 20nb Pipe - Front, Rear & Sides |
| Wheels | 14" Second Hand Rims & New 185R14LT Tyres + Spare S/H |
| Common Articles | Lynch Pins & Bullets to Secure Tailgate Lights in Rear Channel LED Lights to ADRs Mudguard Support Front & Rear - C/Plate Folded Plug Holder Spare Carrier 8" Swivel Jockey Wheel |
Product Options
This section outlines some of many options that are availble
| Code | Details |
|---|---|
| PBLO.3.0001 | FARM TUFF: Upgrade Structural Capacity from 2000kg to 2500kg, Drawbar: 100 x 50 x 3mm, Rocker Roller Suspension 60 x 6.5mm 7 Leaf, Side & Front Runners: 50 x 50 x 3mm, Cross Runners: 50 x 50 x 2mm, Checker Plate Mudguards, Steel Encased Wiring, 10mm Doubl |
