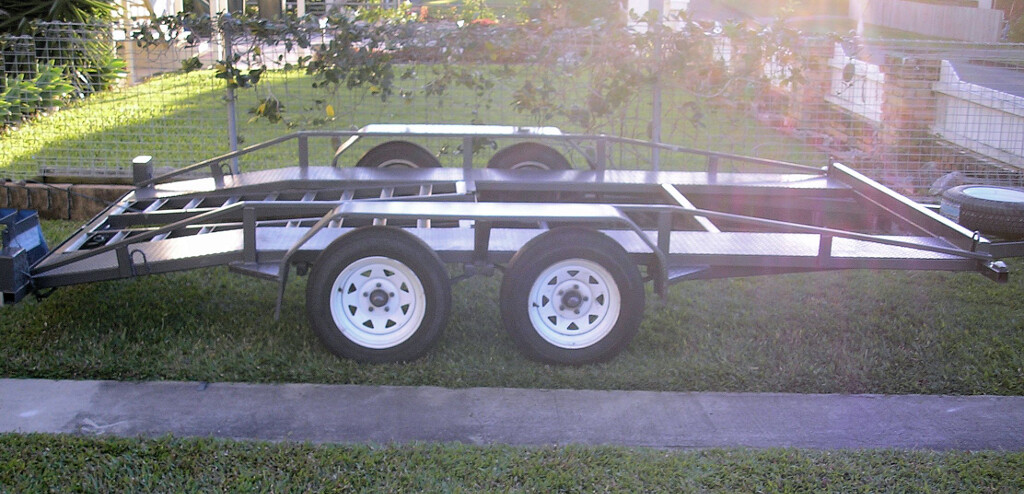

Standard 2.0T, Tandem Axle, Car Carrier (Beaver Tail)
- Reference No:
- 578
- Standard:
- Yes, this product is stock standard
- Tags:
-
- Stock Standard
- Tandem Axle
- Trailer
Technical Specifications
This section outlines some of the more technical aspects of the product displayed above. Please note that the following information applies to a stock standard item only. Adding, removing or modifing components may alter it's dimentions, weight, capacity or any other of the items listed below.
| Attributes | Details |
|---|---|
| Sizing | PBLT.5.0001 - 4000x2000 |
| ATM | 2000 Kg |
| Axle | 45 Round S/L |
| Body | Side Rail - Tapered Front & Rear Side Rail - 25x25x2mm SH Side Rail - 50x25x2mm RHS Front Stop - 72x50x3mm U'Bolt Tie Points - 4 Corners & 2 Drawbar |
| Brakes | 10" Mechanical Over Ride Disc |
| Chassis | Side Runner - 50x50x3mm Longitudinal Runner - 50x50x3mm Front Cross Runner - 50x50x3mm Rear Cross Runner - 50x50x3mm Drawbar - 75x50x3mm Beaver Tail - 900mm (120mm Drop) |
| Coupling | Mechanical Over Ride Coupling 50mm |
| Finish | Etch Prime & Hammertone / Enamel Top Coat |
| Floor | Tracks Checkerplate 400mm Wide |
| Hubs and Bearings | 5 Stud S/L |
| Ramps | 1800 x 400 - Hook On, Angle Runners Ramps Stored Between Floor Tracks |
| Safety Chain | 10mm Rated Double |
| Structural Capacity | 2000 Kg |
| Suspension | 45x6mm 6L Slipper |
| Wheels | 14" Ford Second Hand & 14" Second Hand LT Tyres + Spare |
| Common Articles | Lights on Rear Gusset Rego Plate Bracket Swivel LED Lights C/Plate Mudguard Supports Plug Holder Spare Carrier 6" Swivel Jockey Wheel |
Product Options
This section outlines some of many options that are availble
| Code | Details |
|---|---|
| PBLO.5.0001 | Full Checkerplate Floor 4000 x 2000 "Stock Car" |
| PBLO.5.0002 | Manual Tilt |
| PBLO.5.0003 | Mount for Winch |
Make an Enquiry
If you are interested in this item (or any others) and would like more information, why not contact us on the phone number or enquiry form below.
(07) 3271 1744
