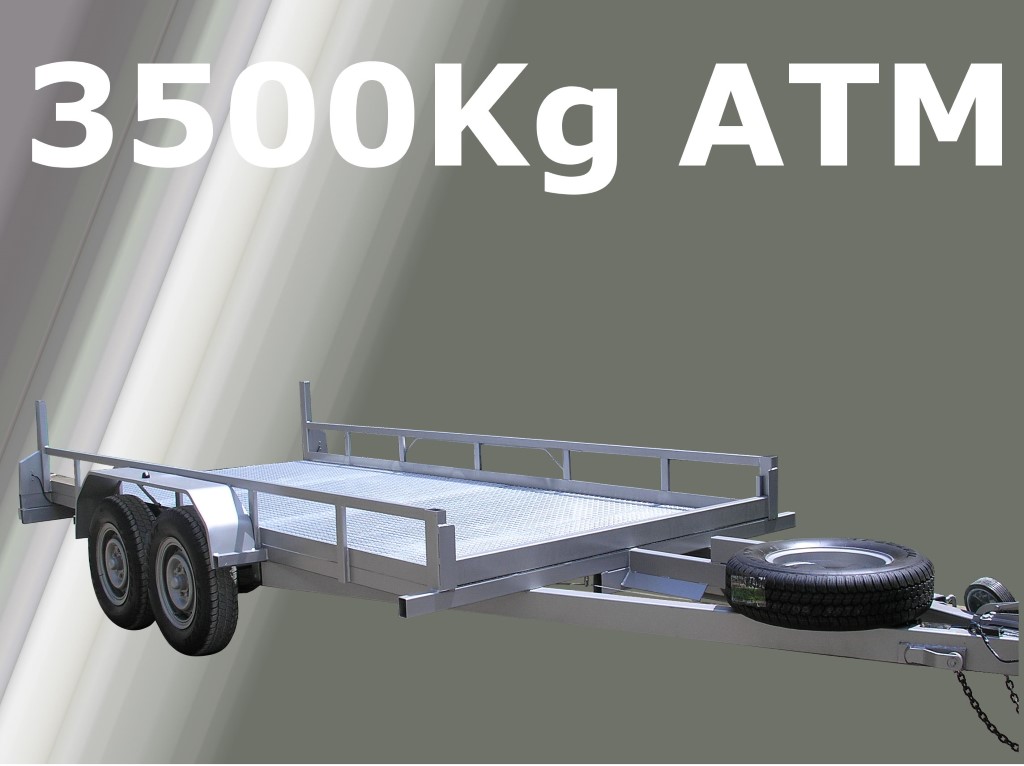

Standard 3.5T, Tandem Axle, Car Carrier
- Reference No:
- 900
- Standard:
- Yes, this product is stock standard
- Tags:
-
- Tandem Axle
- Trailer
Technical Specifications
This section outlines some of the more technical aspects of the product displayed above. Please note that the following information applies to a stock standard item only. Adding, removing or modifing components may alter it's dimentions, weight, capacity or any other of the items listed below.
| Attributes | Details |
|---|---|
| Sizing | PBLT.5.0004 - 5200 x 2000 |
| ATM | 3500 Kg |
| Axle | 55mm Round 2T |
| Body | Side Rail 50x25x3mm - Tapered at Rear U'Bolt Tie Points (5of.) |
| Brakes | 12" Electric on Both Axle Park Brake & Brake-Safe - Breakaway |
| Chassis | Side Runner - 75x50x4mm Front Cross Runner - 75x50x4mm Rear Cross Runner - 100x50x3mm Longitudinal Runner - 75x50x3mm Noggin - 65x35x2mm Drawbar - 125x75x4mm Front Stop - 75x50x3mm |
| Coupling | Electric Brake Coupling 50mm |
| Finish | Etch Prime & Hammertone / Enamel Top Coat |
| Floor | Checkerplate 3.0mm |
| Hubs and Bearings | 6 Stud 2T |
| Ramps | 1500 x 600 Angle Runners, Hinged Locking Arm |
| Safety Chain | 10mm Rated Double c/w Compensating Plate |
| Structural Capacity | 3500 Kg |
| Suspension | 60x6.5mm 7L Rocker Roller |
| Wheels | 16" Sunrasia 6 Stud & New 205R16 Tyres & Spare |
| Common Articles | Lights on Rear Gusset LED Lights Angle Mudguard Support Plug Holder Spare Carrier - Double Bolt 10" Extra Heavy Duty Swivel Jockey Wheel |
Product Options
This section outlines some of many options that are availble
| Code | Details |
|---|---|
| PBLO.5.0001 | Full Checkerplate Floor 4000 x 2000 "Stock Car" |
| PBLO.5.0002 | Manual Tilt |
| PBLO.5.0003 | Mount for Winch |
Make an Enquiry
If you are interested in this item (or any others) and would like more information, why not contact us on the phone number or enquiry form below.
(07) 3271 1744
