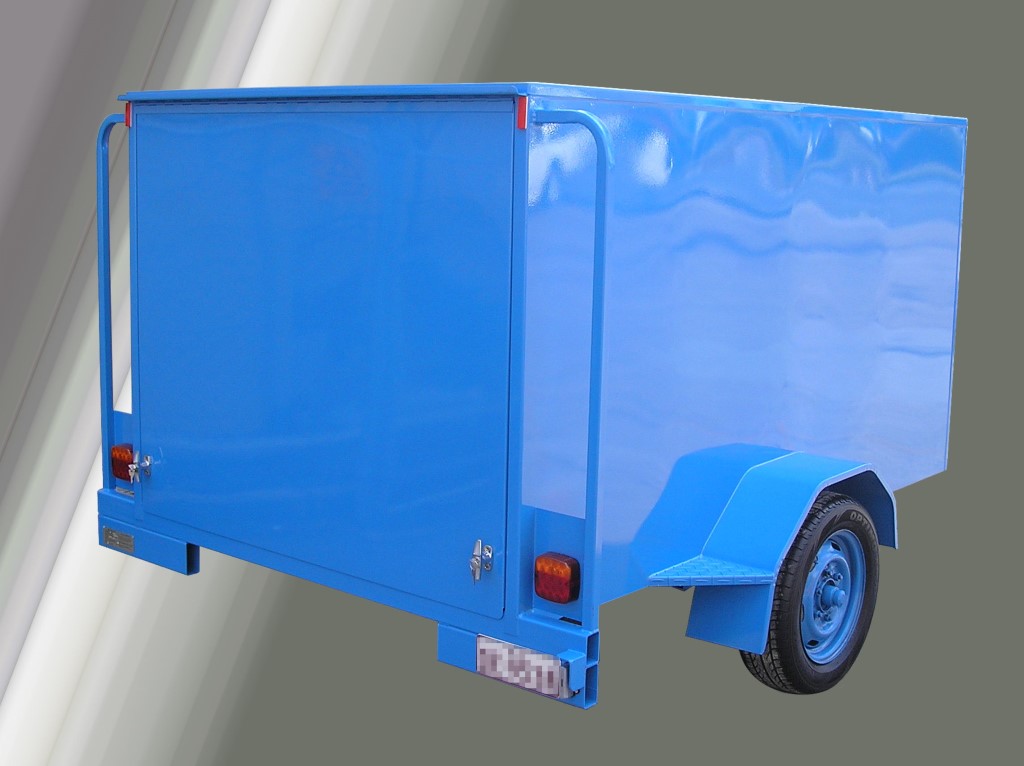

Standard 1750mm High Integral Pantec, 1.5T, Single Axle
- Reference No:
- 909
- Standard:
- Yes, this product is stock standard
- Tags:
-
- Blue
- Single Axle
- Trailer
Technical Specifications
This section outlines some of the more technical aspects of the product displayed above. Please note that the following information applies to a stock standard item only. Adding, removing or modifing components may alter it's dimentions, weight, capacity or any other of the items listed below.
| Attributes | Details |
|---|---|
| Sizing | PBLT.10.0011 - 2100x1500(7x5) PBLT.10.0012 - 2400x1500(8x5) |
| ATM | 1500 Kg |
| Axle | 45mm Round SL |
| Body | Checkerplate Floor 2.1mm Flat Zinc Sheeting RHS Frame |
| Brakes | 10" Mechanical Disc Brakes Ford |
| Chassis | Drawbar - 100x50x3mm RHS Cross Runner - 50x50x2mm (7x5 - 3) Cross Runner - 50x50x2mm (8X5 - 3) Side Runner - 50x50x3mm Front Cross Runner - 50x50x3mm Rear Cross Runner - 75x50x3mm |
| Coupling | Mechanical Over-Ride 50 mm |
| Finish | Etch Prime & Two Pac White |
| Hubs and Bearings | 5 Stud Ford SL |
| Safety Chain | 10mm Rated Single |
| Suspension | 45x8mm 6L Slipper |
| Wheels | 14" Second Hand Rims & New 185R14LT + Spare S/H |
| Rear Door | Double Side Hinge, Three-Way Flush Lock & Inside Spring Bolt |
| Common Articles | Lights In Gussets LED Lights to ADRs Mudguard Support Front & Rear - C/Plate Folded Plug Holder 8" Swivel Jockey Wheel Spare Carrier |
Product Options
This section outlines some of many options that are availble
| Code | Details |
|---|---|
| PBLO.8.0001 | Spring Assisted Ramp, 4ft Wide in leiu |
| PBLO.8.0002 | Spring Assisted Ramp, 5ft Wide in leiu |
| PBLO.8.0003 | Spring Assisted Ramp 6ft Wide in leiu |
| PBLO.8.0004 | Lift-Up Gas Strut Door, 4ft Wide in leiu |
| PBLO.8.0005 | Lift-Up Gas Strut Door, 5ft Wide in leiu |
| PBLO.8.0006 | Lift-Up Gas Strut Door, 6ft Wide in leiu |
| PBLO.8.0009 | Side Door Lift up c/w Gas Struts & Three-Way Flush Lock |
| PBLO.8.0011 | Truncated Roof 300 x 300 |
| PBLO.8.0012 | Tapered Front, to Drawbar Shape incl. 600 Extension of Body |
| PBLO.8.0013 | Rotary Roof Vent (Ea.) |
| PBLO.8.0014 | Aluminium Stoneguard, 400mm High, Front of Guards |
| PBLO.8.0015 | Internal LED Strip Light at Rear |
Make an Enquiry
If you are interested in this item (or any others) and would like more information, why not contact us on the phone number or enquiry form below.
(07) 3271 1744
