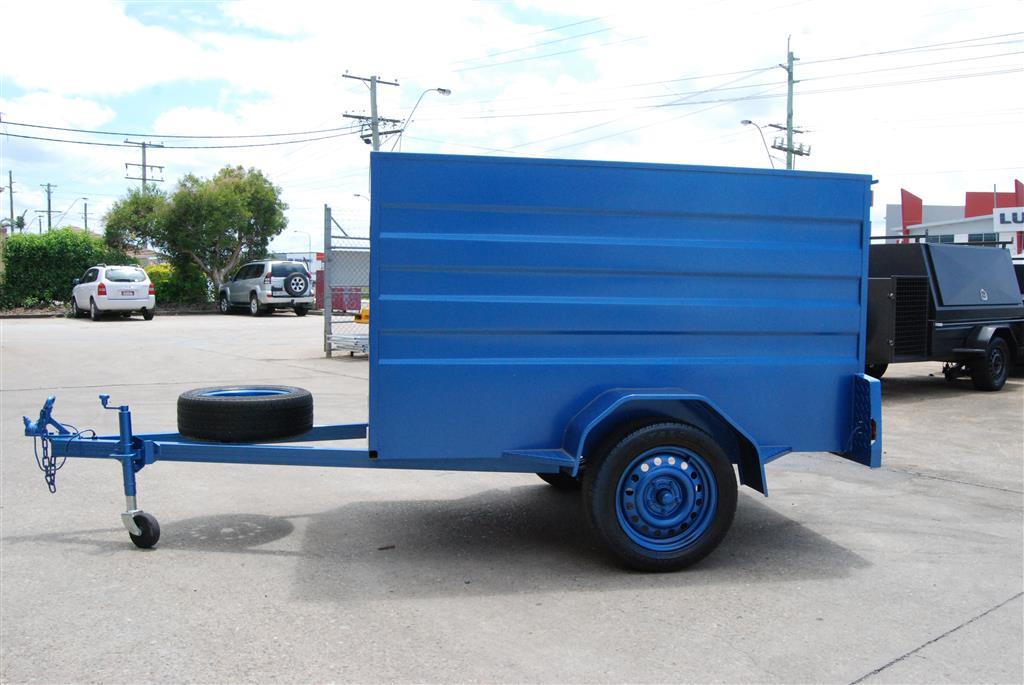

Standard 1130mm High, Single Axle, Integral Ribbed Pantec Trailer


Standard 1130mm High, Single Axle, Integral Ribbed Pantec Trailer
Reference No:
914
Standard:
Yes, this product is stock standard
Tags:
  • Blue
  • Single Axle
  • Trailer

Technical Specifications

This section outlines some of the more technical aspects of the product displayed above. Please note that the following information applies to a stock standard item only. Adding, removing or modifing components may alter it's dimentions, weight, capacity or any other of the items listed below.

Attributes Details
Sizing PBLT.9.0001 - 1800x1200(6x4)
PBLT.9.0002 - 2100x1200x1130 (7x4)
PBLT.9.0003 - 2100x1500x1130(7x5)
PBLT.9.0004 - 2400x1200x1130(8x4)
PBLT.9.0005 - 2400x1500x1130(8x5)
ATM 750 Kg
Axle 39mm Round LM
Body Checkerplate Floor 2.1mm
Ribbed Panels 1.6 HR
RHS Frame
Chassis Drawbar - 75x50x3mm RHS
Cross Runner - 50x50x2mm (6x4 - 2)
Cross Runner - 50x50x2mm (Others - 3)
Side Runner - 50x50x2mm
Front Cross Runner - 50x50x2mm
Coupling Quick Release 50 mm
Finish Etch Price & Hammertone / Enamel Top Coat
Hubs and Bearings 5 Stud LM
Safety Chain 8mm Rated Single
Suspension 45x6mm 6L Slipper
Wheels 14/15" Second Hand Rims & Tyres + Spare
Rear Door Single Side Hinge, T-Handle
Common Articles Lights in Back Channel
12v Lights to ADRs
Mudguard Support Front & Rear - C/Plate Folded
Plug Holder
6" Swivel Jockey Wheel
Spare Carrier

Product Options

This section outlines some of many options that are availble

Code Details
PBLO.7.0001 Tailgate Ramp Spring Assisted in leiu
PBLO.7.0002 Lift up door c/w Gas Struts & T Handle in leiu
PBLO.7.0003 Door Option 3 Way Flush Locks in leiu
PBLO.7.0004 Internal 12V Light
PBLO.7.0005 Rotary Roof Vent (Ea.)
