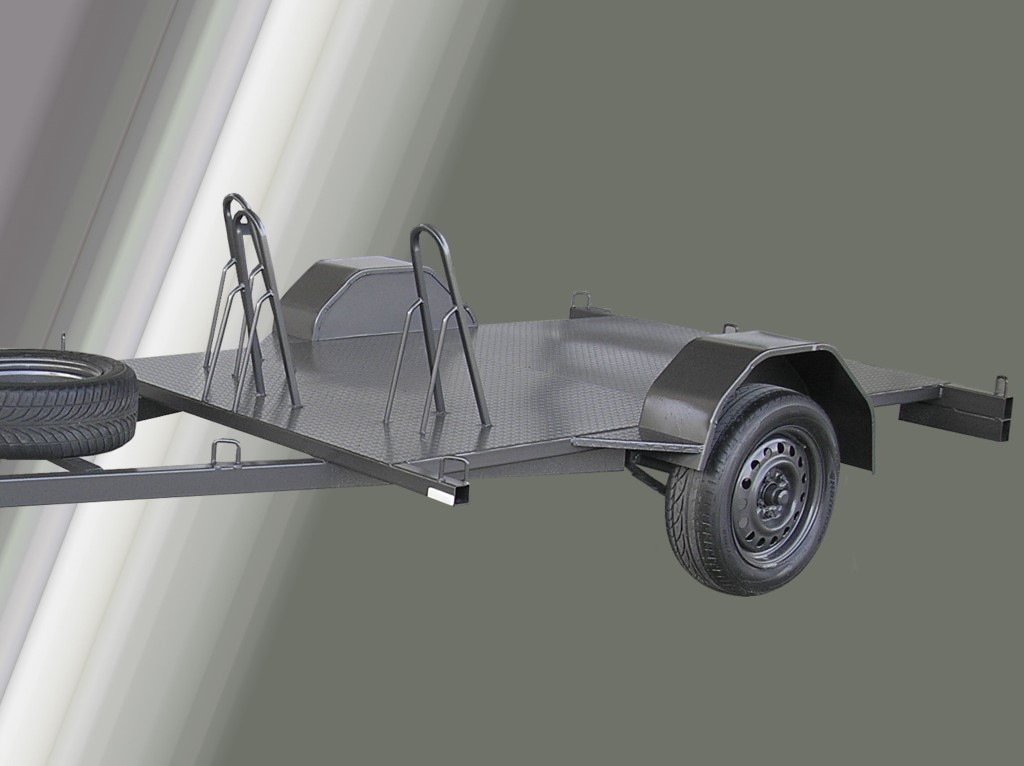

Standard Motor Bike Trailer


Standard Motor Bike Trailer
Reference No:
917
Standard:
Yes, this product is stock standard
Tags:
  • Single Axle
  • Trailer

Technical Specifications

This section outlines some of the more technical aspects of the product displayed above. Please note that the following information applies to a stock standard item only. Adding, removing or modifing components may alter it's dimentions, weight, capacity or any other of the items listed below.

Attributes Details
Sizing PBLT.8.0001 - 2100 x 1200 (1Bike)
PBLT.8.0002 - 2100 x 1200 (2 Bike)
PBLT.8.0003 - 2400 x 1500 (3 Bike)
ATM 750 Kg
Axle 39mm Round LM
Body Checkerplate Floor
Front Wheel Support
Light Gussets
Mudguards & Mudguard Infill
Mudguard Support Front & Rear - C/Plate Folded
Chassis Drawbar - 75x50x3mm RHS
Cross Runner - 50x50x2mm (3)
Side Runner - 50x50x2mm
Rear Cross Runner - 50x50x2mm
Coupling Quick Release 50mm Adjustable
Finish Etch Prime & Hammertone / Enamel Top Coat
Hubs and Bearings 5 Stud LM
Ramps Hook On Ramp C/Plate
Underfloor Ramp Store
Safety Chain 8mm Rated Single
Structural Capacity 1000 Kg
Suspension 6 Leaf 45x6mm Slipper
Wheels 15" 5 Stud Second Hand Rims & Tyres + Spare
Common Articles U'Bolt Tie Points
12v Light to ADRs
Plug Holder
Spare Carrier
6" Swivel Jockey Wheel
