Standard 2200Lt Braked, Tandem Axle Tanker Trailer

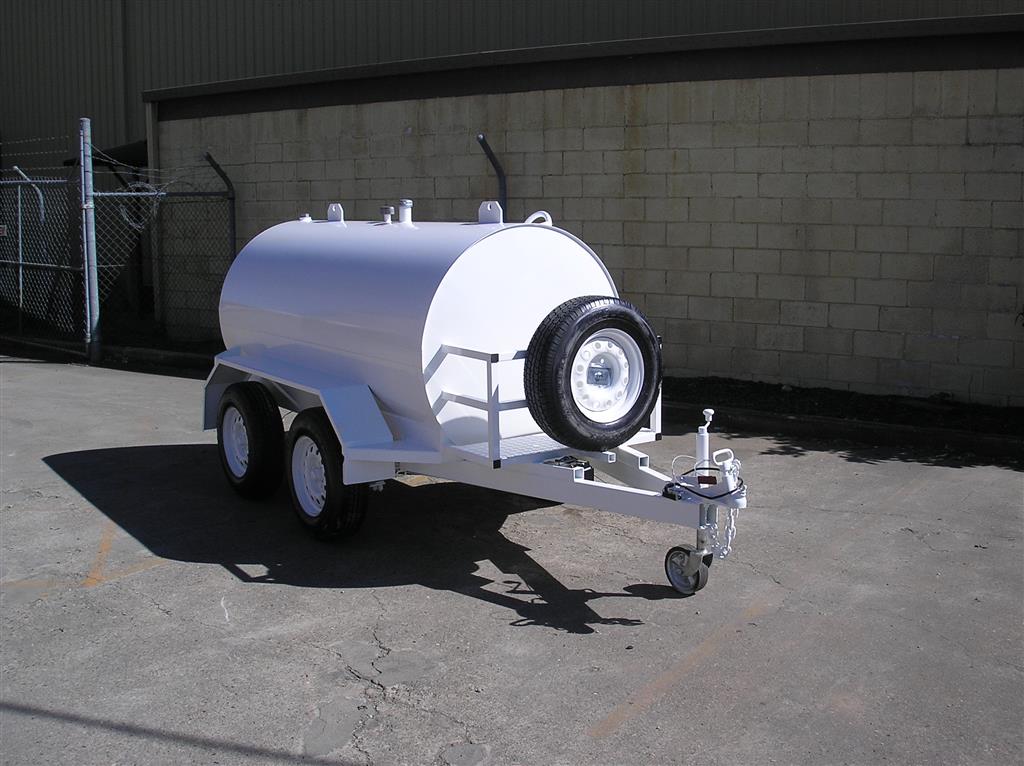

This standard 2200Lt braked tandem axle tanker trailer features an 8-inch heavy duty swivel jockey wheel. It adds support to the unhooked trailer and aid helps with manual adjustment of the parked position. The tank cylinder is made of 3mm rolled plate with dished ends. Place the spare tyre vertically on the drawbar’s wheel carrier for convenient access when its’s needed. The 16" tyres are mounted on 6 stud wheels. Durable checkerplate fenders include a side step for standing. The passenger side of the tank features a safety handle towards the top. Drum rack in front of tank cylinder can be used for pump mounting.
- Reference No:
- 933
- Standard:
- Yes, this product is stock standard
- Tags:
-
- Tandem Axle
- Tank
- Trailer
- White
Technical Specifications
This section outlines some of the more technical aspects of the product displayed above. Please note that the following information applies to a stock standard item only. Adding, removing or modifing components may alter it's dimentions, weight, capacity or any other of the items listed below.
| Attributes | Details |
|---|---|
| Axle | 45mm Square SL |
| Body | Tank Cylinder - 3mm Rolled Plate & Dished Ends Internal Half Baffle Drum Rack on Drawbar (RHS Frame, Checkerplate Floor) Tandem Axle Checkerplate Mudguards Front & Rear Checkerplate Mudguard Step Passenger Side Handle Vertical Spare Wheel Carrier on Drawbar Top Mounted Lifting Lug Points Tank Fittings (1" Breather,2" Filler,2" Outlet (Top Rear),1" Outlet x 2 (Ends at Bottom),1" Drain & Plug) |
| Brakes | 10" Electric - 4 Wheel (In Cab Control) Park Brake & Brake-Safe - Battery Breakaway |
| Chassis | Drawbar - 100x50x4mm RHS Side Frame - 150x150x10mm Angle |
| Coupling | 3.5T 50mm Ball |
| Finish | Etch Prime & Hammertone Charcoal Top Coat |
| Jocky Wheel | 8" Heavy Duty Swivel |
| Safety Chain | 10mm Rated Double |
| Suspension | 6 Leaf 45x8mm Shackle Rocker |
| Wheels | 16" 6 Stud Sunrasia & New 205R16 Tyres + Spare |
| Desiel Capacity | 2200Ltr Maximum |
